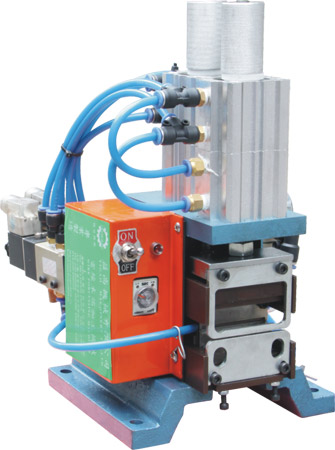

YG-4F直立式双刀剥皮机
特点说明 改良传统电脑心线剥皮用脚踏手拉方式，演进成前夹后退方式，节省体力之
最佳机型。 操作时采平面左右移动方式，缩短机、夹座距离，使电脑线或特殊短线均可
本机使用。 特殊结构，速度快，电脑线及一般电线，半剥、全剥，调整容易为电线末端
加工最新机种。 双刀双气缸、双电磁阀，配过滤器，延时可让剥皮更加稳定，可剥HDMI等
高要求线材和普通机剥不到的
Explanation of features It changes the foot-stepping and hand-drawing mode of traditional computer
stripping to front-clipping and rear-reversing mode. It is the best type for
labor-saving. It adopts horizontal left-and-right movements to shorten the distance
between wire and clip seat. It is applicable to computer wire and special
short wire. It adopts a special structure and boasts the advantages of high speed and
convenient adjustment. It is applicable for half-stripping and whole-stripping
of computer wire and common wire. Thus, it is the latest type for processing
of wire end. It is equipped with double-cylinder, double-solenoid valve, and filter, which
can make the stripping more stable. It is applicable to HDMI and other wire
materials with high requirements, as well as those that cannot be managed
技术参数Technical parameters | 型号 | Model | YG-4F | | 电源 | Power | 5--7kgf(需使用清洁干燥空气) | | 空气压力 | Air pressure | 5Kgs | | 剥皮长度 | Stripping length | Max.15mm | | 气缸尺寸 | Cylinder size | 主64x64x60--1 副52x52x100--2 | | 外观尺寸 | External dimensions | 280mmX180mmX270mm | | 重量 | Weight | 9.5Kg |
|
