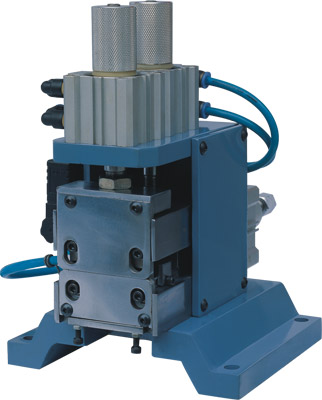

YG-3F直立式剥皮机
{$产品视频$}
特点说明
- 改良传统电脑心线剥皮用脚踏手拉方式，改进成前夹后退方式，节省体力之最佳机型。
- 操作时采平面左右移动方式，缩短线、夹座距离，使电脑线或特殊短线均可本机使用。
- 特殊结构，速度快，电脑线及一般电线，半剥、全剥，调整容易为电线末端加工最新机种。
Explanation of features
-
1. It changes the foot-stepping and hand-drawing mode of traditional computer
stripping to front-clipping and rear-reversing mode. It is the best type for
labor-saving.
- It adopts horizontal left-and-right movements to shorten the distance between
wire and clip seat. It is applicable to computer wire and special short wire.
- It adopts a special structure and boasts the advantages of high speed and
convenient adjustment. It is applicable for half-stripping and whole-stripping
of computer wire and common wire. Thus, it is the latest type for processing
of wire end.
技术参数Technical parameters
| 型号 |
Model |
YG-3F |
| 电源 |
Power |
110v/220V 50/60HZ |
| 空气压力 |
Air pressure |
5Kgs |
| 剥皮长度 |
Stripping length |
Max.15mm |
| 气缸尺寸 |
Cylinder size |
主64x64x60--1 副52x52x50--2 |
| 外观尺寸 |
External dimensions |
260mmX150mmX270mm |
| 重量 |
Weight |
9Kg |
|
