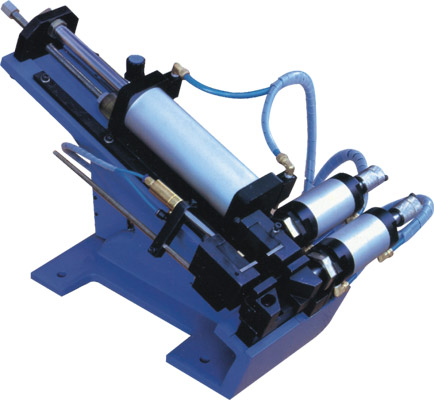

YG-305/310/316气电式电线剥皮机
特点说明 斜背式设计，合乎人体工学。双动式气缸，无弹簧断裂之虑。精致式刀模，大小型机种，刀模皆通用。 独特式滑座，往复行程平稳，切剥精准。气电式控制，轻巧敏捷，作业 轻松。 可调式结构，视线材粗细而作调整。AC/DC电源线、电脑线、电子线、多心线、特殊电线。
Explanation of features The hatchback design conforms to ergonomics. The double-action cylinder can get rid of the fault of spring break. The exquisite knife mold is applicable
to large- and small-sized machines. The unique sliding seat can make the reciprocating stroke stable and cutting & stripping precise. The gas electric type control can make the operation simple, rapid and convenient. The structure can be adjusted according to the thickness of wire material, and is applicable to AC/DC power cord, computer wire, electronic wire, multi-core wire and special wire.
技术参数Technical parameters | 型号 | YG-305 | YG-310 | YG-316 | | 行程 | 50mm | 100mm | 160mm | | 剥皮长度 | 50mm | 100mm | 160mm | | 剥线能力 | Max.5mm | Max.15mm | Max.20mm | | 空气压力 | 3--7kgf(需使用清洁干燥空气) | 3--7kgf(需使用清洁干燥空气) | 3--7kgf(需使用清洁干燥空气) | | 电压 | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz | | 能力 | 31--73kg | 49--115kg | 49--115kg | | 气缸尺寸 | 主φ45x125--1 副φ37x90--2 | 主φ55x180--1 副φ45x95--2 | 主φ75x230--1 副φ58x120--2 | | 外观尺寸 | 400x300x270mm | 480x330x280mm | 660x390x340mm | | 重量 | 20kg | 25kg | 35kg |
|
