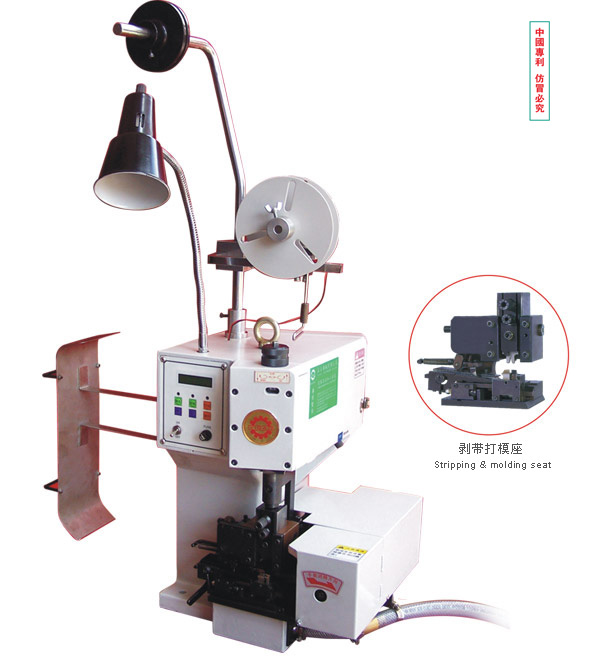

YG-1.8TS 数控式连续剥皮打端机
| 适配加工电线线径范围 Applicable scope of processing wire diameter | | mm2 | 0.013 | 0.03 | 0.05 | 0.08 | 0.1 | 0.2 | 0.3 | 0.5 | 0.9 | 1.3 | 2.0 | 3.0 | 5.0 | | AWG | 36 | 32 | 30 | 28 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | | | 线径范围 | | | | |
特点说明
电线剥皮及端子压着一个动作完成。卡式模座和剥皮系统的组合使机台达到连惯动作。 剥皮系统采用步进电机驱动，瞬间启动能产生高扭矩效果。 剥皮系统设计有自动、手动及自动回位等功能。 待机时间可调整：可视线材及端子需求而来调整，端子铆合完成之后，剥皮座回位之时间。 使用凸输方式完成剥皮及进刀深度，稳定性高。 端子铆合松紧度可由机台上方微调旋转调整， 调整精度每格 0.02mm 。 有抽取线皮屑及退料装置之设计
Explanation of features The wire stripping and terminal pressing are completely together. The combination of cassette mold seat and stripping system can manage continuous operation. The stripping system adopts stepping motor driving, and the instant starting can produce effect of high torque. The stripping system has the functions of automatic return, manual return, and automatic return, etc. The stand-by time can be adjusted. Adjust the return time of stripping seat after terminal riveting according to requirements of wire material and terminal. Manage stripping and cutting depth through convex transmission, to ensure high stability. The terminal riveting tension can be adjusted through rotation of upper part of the machine, with the adjustment precision of 0.02mm/grade. It can draw wire waste and returning equipment.
技术参数Technical parameters | 型号 | Model | YG-1.8TS | | 作业能力 | Work capacity | 电线的剥皮以及端子压著的连贯作业 Uninterrupted wire stripping and terminal pressing | | 电 源 | Power | AC 110/220V 50Hz/60Hz 单相 AC 110/220V 50Hz/60Hz single-phase | | 马 达 | Motor | 端子机1/3HP 剥皮部分步进马达 40W Terminal machine 1/3HP; stepping motor in stripping part: 40W | | 控制方式 | Control mode | 可自动剥皮打端子、可单独压端子、可单独剥皮 It can manage automatic stripping and terminal pressing, separate terminal pressing and separate stripping. | | 能 力 | Capacity | 1.8Ton | | 冲 程 | Stroke | 30mm | | 剥皮长度 | Stripping length | 2--6mm | | 空气压力 | Air pressure | 5--8kgf(需使用清洁干燥空气) 5-8kgf (need clean and dry air) | | 外观尺寸 | External dimensions | 440x500x2800mm | | 重 量 | Weight | 90kg |
|
