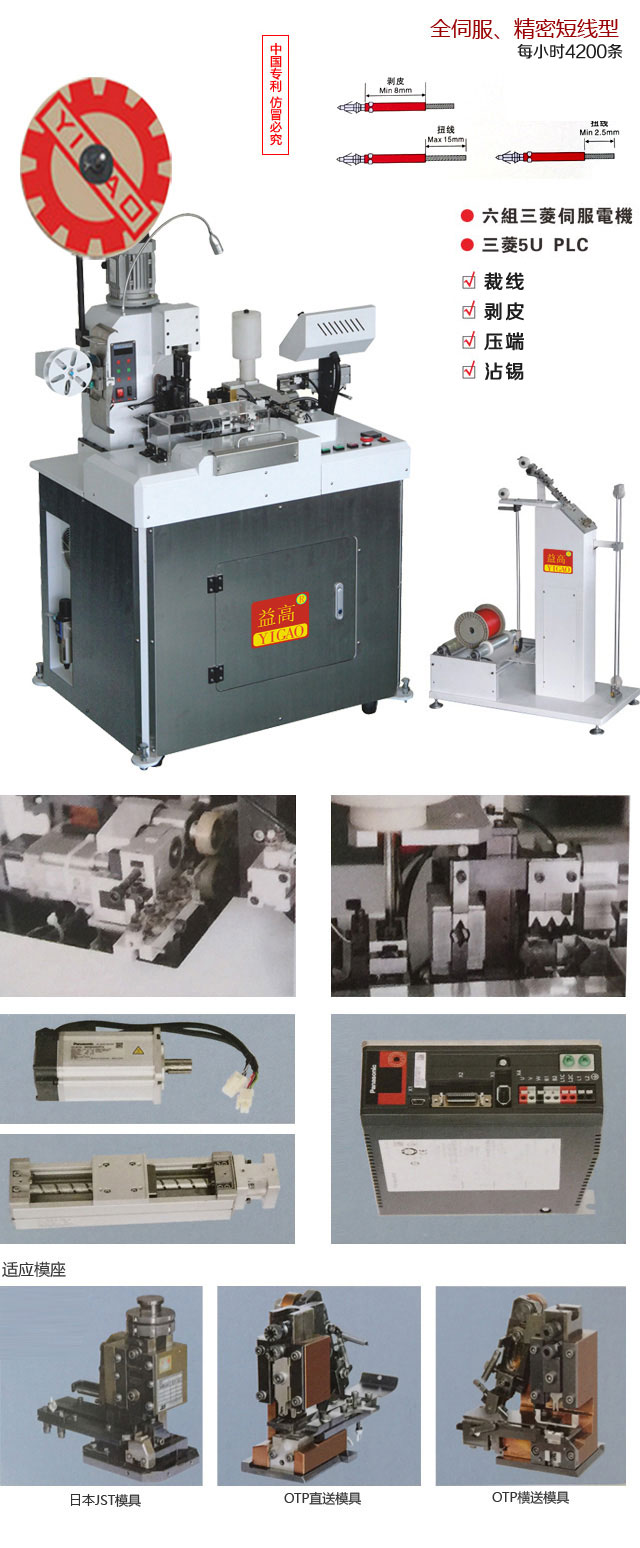

型号 | Model | YG-G5 |
电源 | Power | AC220V 50/60 Hz 单相 AC220V 50/60 Hz single-phase |
功能 | Function | 电线切断、单端剥皮、双端剥皮、单端压着、单端扭线、单端沾锡、单端半剥 Wire cutting, single-end stripping, double-end stripping, single-end pressing, single-end twisting, single-end wetting, and single-end half-stripping |
产能 | Productivity | 3900 条 / 小时(300mm以内) 3900 pieces/hour (within 300mm) |
适用线径 | | AWG#18-AWG#36 |
适用线种 | | AV、AVS、AVSS、CAVUS、KVKIV、UL |
加工尺寸 | | 前端0.1-7mm 后端0.1-15mm |
切断长度 | Cutting length | 8mm--9999mm (指中间留皮部分refer to the middle part with skin) |
切断精度 | Cutting Precision | ±0.1(0.1+0.005*L)mm 以内L=切断长度 |
适用端子 | | 连续端子、横、直式、前端最长25mm 后端最长25mm |
压着能力 | Pressing capacity | 2.0T |
制动方式 | | 全伺服控制 |
空气压力 | Air pressure | 5--8kgf(需使用清洁干燥空气) 5-8kgf (need clean and dry air) |
检测装置 | Testing equipment | 入线异常、气压不足、冲模不良、端子有无、未打端、未剥皮 Abnormal entering, insufficient pressure, unsound punching, no terminal, no ending, no stripping |
外观尺寸 | External dimensions | 1100 x 920 x 1600 mm |
重量 | Weight | 350kg |
