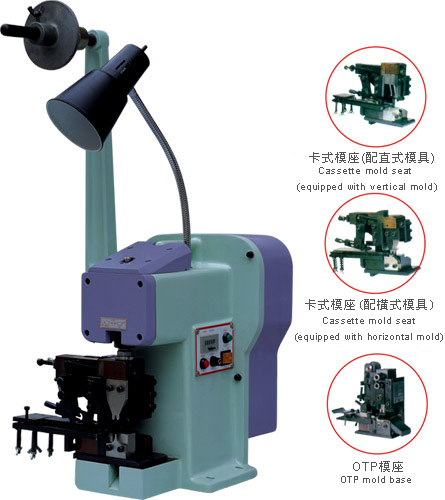

YG-1.5A 连续端子半自动压著机
{$产品视频$}
特点说明
- 本机采用滚轮式离合器，静音、速度快，定点准，操作简单。可配合多种厂牌之
直、横式模具，通用性大，只需更换底座及中仁即可。
- 易於调整压著深度，只需松开螺丝即可由上方微调。出力1.5TON，可广泛使用於
各种端子的铆合出力足。
Explanation of features
- It adopts rolling wheel clutch, with the advantages of no noise, high speed,
correct positioning, and simple operation. It is applicable to various vertical and
horizontal molds after simple exchange of base and core.
- It can easily adjust the pressing depth through upper micro-adjustment after
screw loosening. Force is 1.5TON. It is widely used in riveting force feet of
various terminals.
技术参数Technical parameters
| 机 型 |
Mode |
YG-1.5A |
| 能 力 |
Capacity |
1.5Ton |
| 电 源 |
Impulsive force |
AC 110/220V 50Hz/60Hz |
| 马 力 |
Horsepower |
120W |
| 冲 程 |
Stroke |
30mm |
| 送 距 |
Maximum feed |
32mm |
| 操作方式 |
Operation mold |
单动脚踏开关 Single-action foot switch |
| 外观尺寸 |
External dimensions |
250mmX370mmX420mm |
| 重 量 |
Weight |
70Kg |
|
