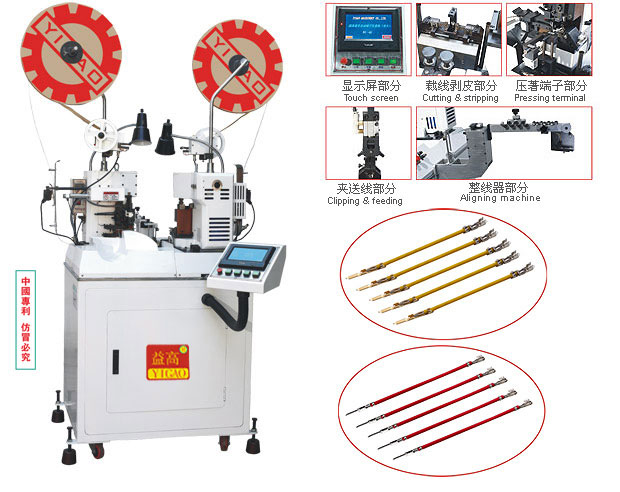

型 号 | Model | YG-G2 |
电 源 | Power | AC220V 50/60 Hz 单相(single-phase) |
功 能 | Function | 电线切断、单端剥皮、双端剥皮、单端压着、双端压着 Wire cutting, single-end stripping, both-end stripping, single-end pressing, and both-end pressing |
产 能 | Productivity | 4800 条 / 小时( 300mm以内) 4800 pieces/hour (within 300mm) |
电线规格 | Wire specification | AWG32 -- AWG18 |
剥皮长度 | Stripping length | A端:0.5mm--13mm(20mm不含打端、35mm半剥) B端:0.5mm--10mm |
加工长度 | Processing length | 30mm--9999mm(指中间留皮部分refer to the middle part with skin) |
切断精度 | Cutting precision | 误差少于1mm(设定长度x0.002)可修正 The error less than 1mm (set length x 0.002) can be corrected. |
空气压力 | Air pressure | 5--8kgf(需使用清洁干燥空气) 5-8kgf (need clean and dry air) |
检测装置 | Testing equipment | 入线异常、气压不足、冲模不良、端子有无、未打端、未剥皮 Abnormal entering, insufficient pressure, unsound punching, no terminal, no ending, and no stripping |
压着能力 | Pressing capacity | 2.0吨 |
外观尺寸 | External dimensions | 700W x 880L x 1500H mm |
重量 | Weight | 400kg |
