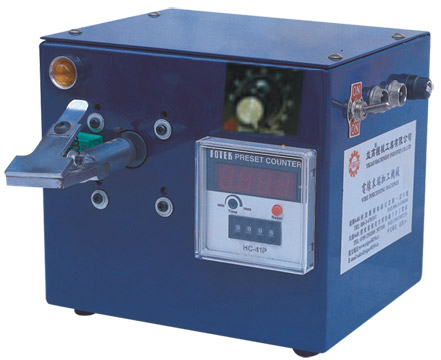

YG-TWX电动式绞线机(可调式)
{$产品视频$}
特点说明
绞线出力均匀，成品结实品质稳定。压力强，可一次多股。可选择绞线方向。电
子控制，操作方便(包括端子打好或接点都穿好均可操作)。打开电源开关后，电
源指示灯亮。请选择马达正逆转以决定绞线方向。按下脚踏开关，调整控制板上
的计次器以设定绞线圈数。将线夹在夹口里，视电线股数调整夹子弹簧螺丝以决
定压力松紧，开始操作。
Explanation of features
The stranding force is even, and the quality of finished products is sound and
stable. The pressure is large, and can manage several strands at a time. The
user can choose the stranding direction. The electronic control makes the
operation convenient (the operation is possible after the terminals or adaptors
are operated). After the power switch is opened, the power light is on. Please
choose the positive rotation of motor to decide the stranding direction. Push
the foot switch and adjust the counter on the control panel to set the stranding
quantity. Clip the wire in the nip, adjust the clip spring screw according to the
strands of wire to decide the pressure, and then start the operation.
技术参数Technical parameters
| 型号 |
Model |
YG-TWX |
| 电源 |
Power |
110V/220V 50/60Hz |
| 绞线能力 |
Stranding capacity |
2--6Res |
| 外观尺寸 |
External dimensions |
280x250x150mm |
| 重量 |
Weight |
8Kg |
|
