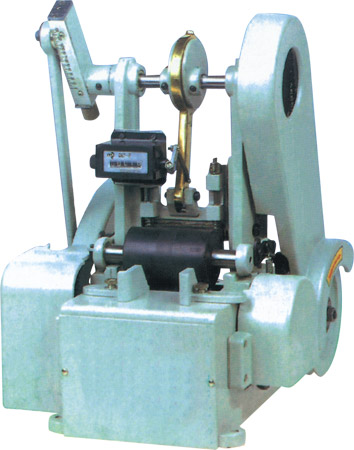

YG-815自动切管机
特点说明
- 本机适用於热缩套管、电线排线、隔离线等切除、长短机械调试，通过刻度调整，计数器记数，全自动拉切，运转平稳，操作方便。
Explanation of features
- It is applicable for cutting and mechanical length adjustment of heat shrinkage
bush, flat cable, and separating wire, etc. The scale adjustment, counting by
counter, and fully-automatic drawing and cutting can make the running stable
and operation convenient.
技术参数Technical parameters
| 型号 |
Model |
YG-815 |
| 切带宽度 |
Stripping width |
0--150mm |
| 切带频率 |
Cutting frequency |
32次/分 |
| 切断长度 |
Stripping length |
0--99999 mm |
| 马力 |
Horsepower |
1/4HP |
| 外观尺寸 |
External dimensions |
1300x1050x1350mm |
| 重量 |
Weight |
35kg |
|
