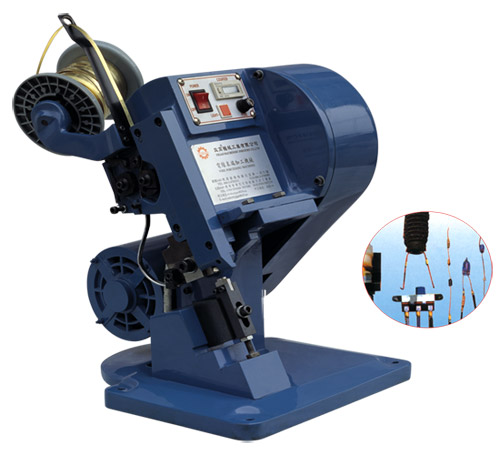

YG-45 Semi-automatic connecting terminal machine (copper belt machine)
{$产品视频$}
Explanation of features
- It is specially designed for wire material requiring riveting processing, with the
advantages of high speed and sound quality. The pressing mode substitutes the
traditional wetting mode, without the disadvantages of cold welding, air welding
and air pollution. It is the most convenient and efficient way to pass testing of
various safety specifications (UL, JIS).
- It adopts special continuous copper belt terminal material cutting, forming and
pressing together, with the advantages of no waste and cost saving.
- The copper belt terminal is treated with special grain. The tension resistance is
quite strong after riveting, and the quality is stable. It is equipped with straight
and bent mold seats for different products. It boasts the advantages of people-
oriented design, simple operation, and operation without need for training.
Technical parameters
| Mode |
YG-45 |
| Power |
AC 110V/220V |
| Horsepower |
1/4HP |
| Capacity |
2 Ton |
| Copper belt terminal size |
2mm/4mm/6mm/8mm |
| External dimensions |
370x400x500mm |
| Weight |
50kg |
|
